Looking for the ultimate TPMS tool that offers advanced features and top-tier performance? The Autel MaxiTPMS TS900 is a premium, all-in-one solution designed for tire techs and automotive professionals. This powerful 8-inch wireless tablet goes beyond basic TPMS functions by activating, reading, and relearning all TPMS sensors, including Tesla OE, and programming Autel 1-Sensors to replace 99% of sensors on the road. It also supports Autel BLE Sensors for Tesla vehicles and other BLE-equipped cars.
With bi-directional controls, active tests, and over 40 service functions, the TS900 covers more than just TPMS diagnostics. It includes advanced features like industry-leading Relearn-by-OBD, service light resets, brake bleeds, and airbag calibrations. Powered by Android 11, 4GB RAM, and 64GB storage, the TS900 ensures fast, efficient operations and seamless communication with the latest vehicle protocols. Whether you're performing pre- and post-scans or handling complex diagnostics, the TS900 is your go-to tool for professional-grade TPMS service.
Specs:
Recommended Use: IndoorOperating System: Android 11
Processor: RK3566 Quad-core Arm Cortex-A55 (1.8 GHz)
Memory: 4GB RAM, 64GB ROM
Display: 8-inch LCD, 1280 x 800 resolution
Rear Camera: 8MP
Sensors: Ambient light sensor for auto-brightness adjustment
Connectivity:
- USB Type-C
- USB 2.0
- Wi-Fi
- Bluetooth
- Mini SD card (up to 64GB)
Audio Input/Output:
- Input: N/A
- Output: Buzzer
Power and Battery:
- Battery: 3.7 V/7700 mAh lithium-polymer
- Charging Input: 5 V/3 A
- Battery Life: ~7 hours continuous use
- Power Consumption: Approx. 600 mA @ 3.7 V (default brightness, Wi-Fi on)
Operating Environment:
- Temperature: 0 to 50°C (32 to 122°F)
- Storage Temperature: -10 to 60°C (14 to 140°F)
- Humidity: 5% - 95% non-condensing
Dimensions: 259.87 x 168.98 x 33.60 mm (10.23in x 6.65in x 1.32in)
Net Weight: 998 g (2.2 lbs)
Protocols Supported:
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (High-speed, Middle-speed, Low-speed, Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD
Similar Products
TS608

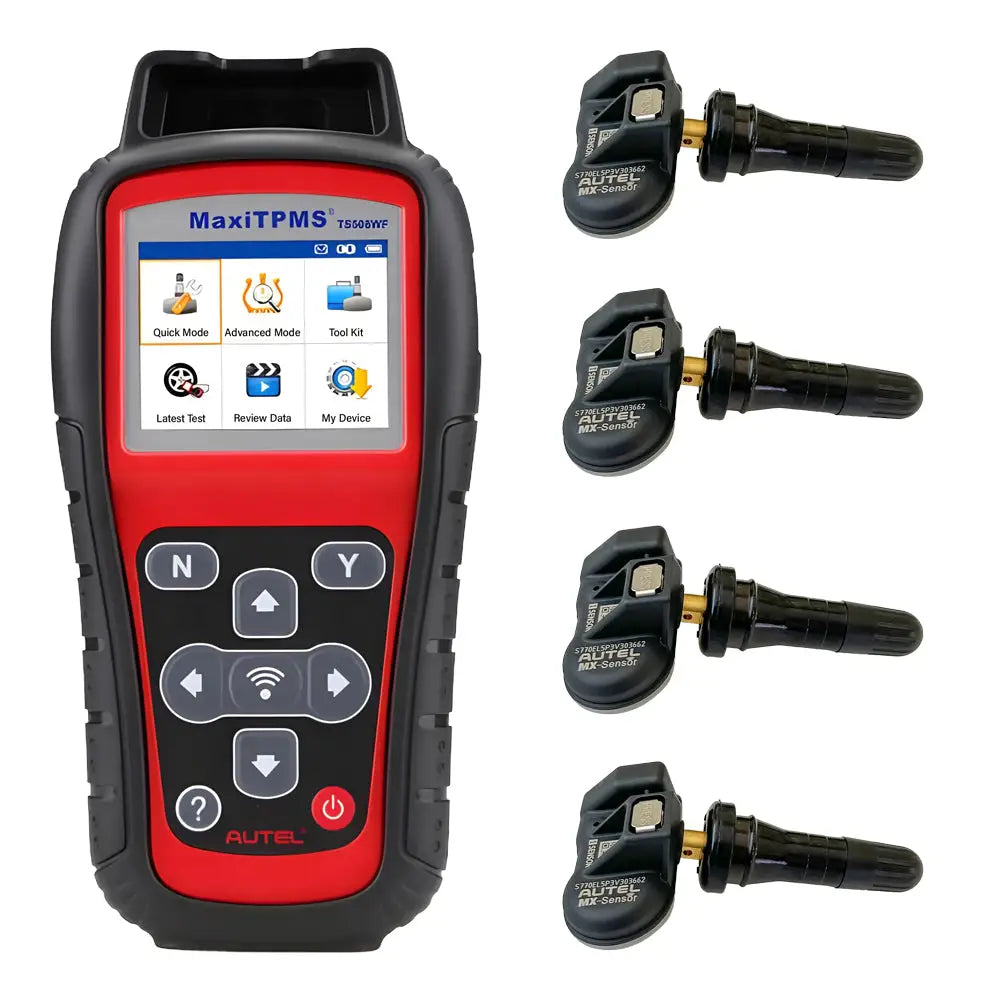

TS508WF
Application:
TPMS: TPMS Sensor Programming, TPMS Activation, Sensor RelearnDiagnostic: Vehicle Diagnostics, Live Data Viewing, Code Reading/Clearing, Pre/Post Scans, Diagnostic Scanning
Service: Brake Reset, Oil Light Reset, Airbag Calibration, Parking Brake Reset, Service Light Reset
Maintenance: Fleet Maintenance, Battery Diagnostics
For Business:
Tire Shops
Automotive Repair
Fleet Maintenance
Dealerships
Mobile Mechanics
Includes:
1 x TS900 Tablet1 x MaxiVCI V150 Veh. Data Connector
1 x Power Adapter
1 x USB Type-C Cable
