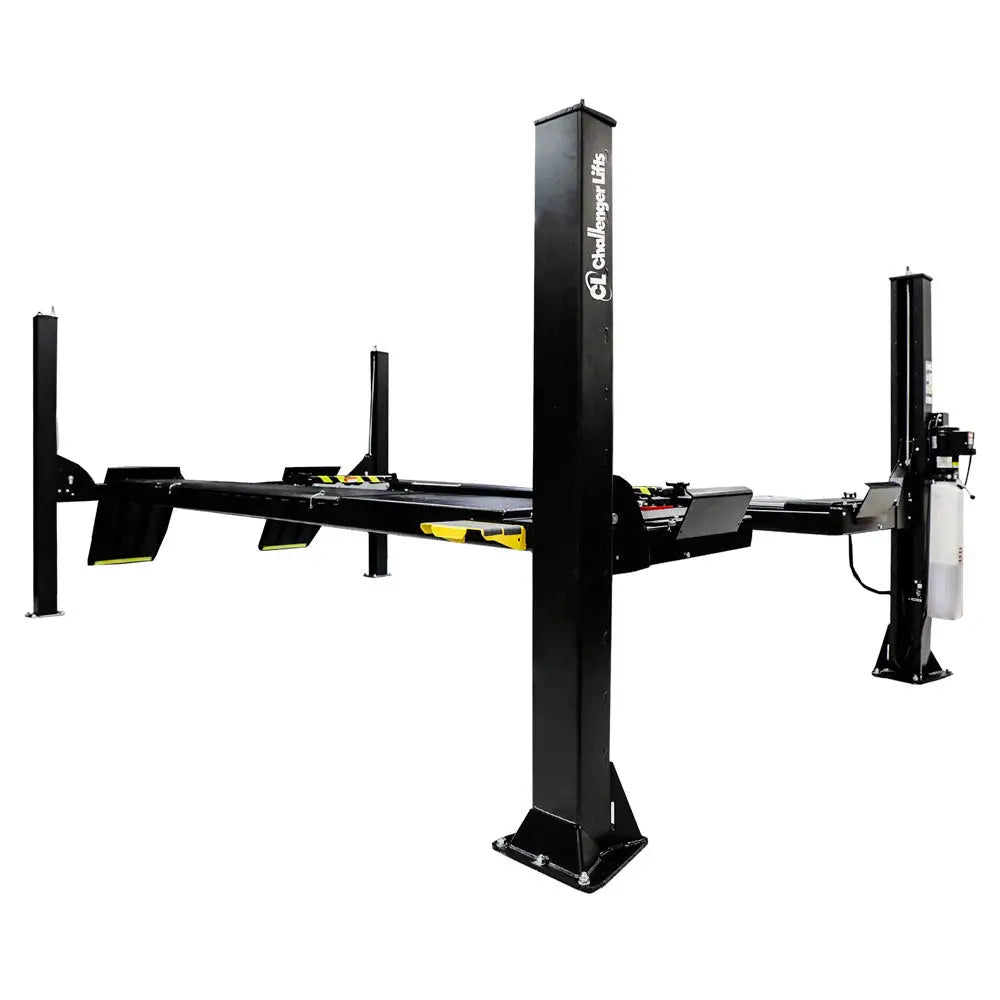

Designed with productivity and safety in mind, our newly improved 15,000 lb 4-Post Lift would be a great addition to any shop floor.
Increase your customer base with this lift as it can accommodate and service a wide range of vehicles. Anything from a small passenger car to a medium-duty truck and even medium-sized vans. All while boosting workplace safety with our open front design, assisting technicians moving around a vehicle's frame.
Note:
- Image is shown with an open front.
Features:
- All-new and wider 22-inches runways.
- Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long-length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
- Louvered approach ramps prevent wheelspin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new and improved all-enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry's latest imaging alignment systems.
- 17 locking positions with improved lock design.

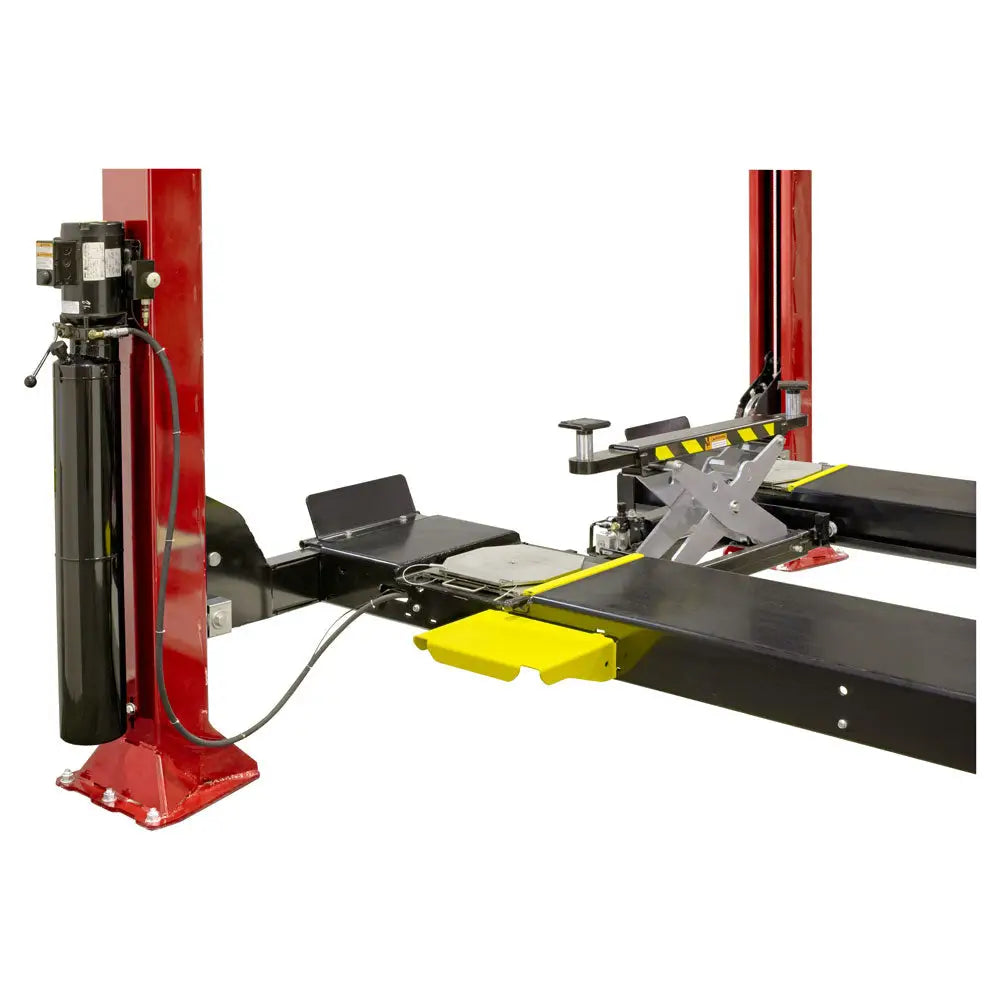

- Optional Alignment kit includes: rolling jacks, an internal airline system, & stainless steel turn plates

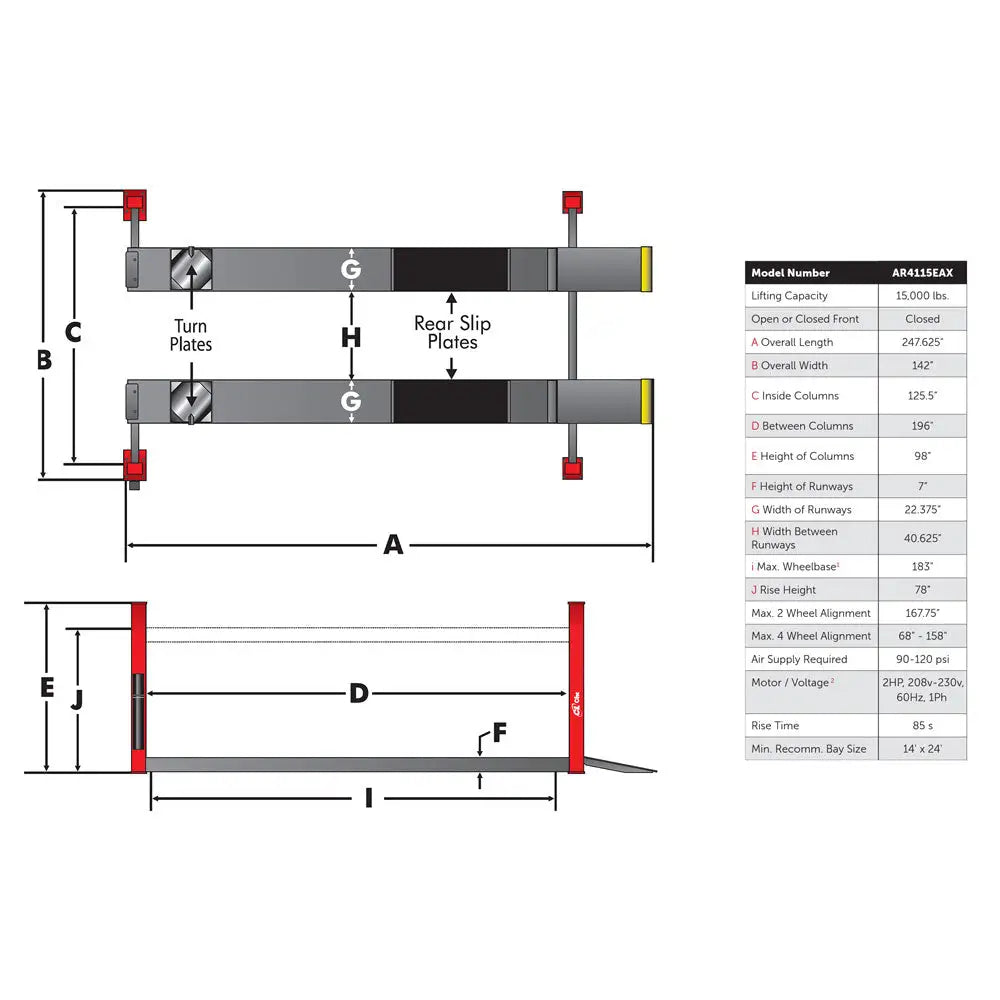

Specs:
Model No.: AR4115EAXLifting Capacity: 15,000 lbs.
Open or Closed Front: Closed
Overall Length: 247.625in
Overall Width: 142in
Inside Columns: 125.5in
Between Columns: 196in
Height of Columns: 98in
Height of Runways: 7in
Width of Runways: 22.375in
Width Between Runways: 40.625in
Max. Wheelbase: 183in
Rise Height: 78in
Max. 2 Wheel Alignment: 167.75in
Max. 4 Wheel Alignment: 68in - 158in
Air Supply Required: 90-120 psi
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Rise Time: 85 sec
Min. Recomm. Bay Size: 14ft x 24ft
ALI/ETL Certified: Yes
Colors Available: Red, Blue, Black

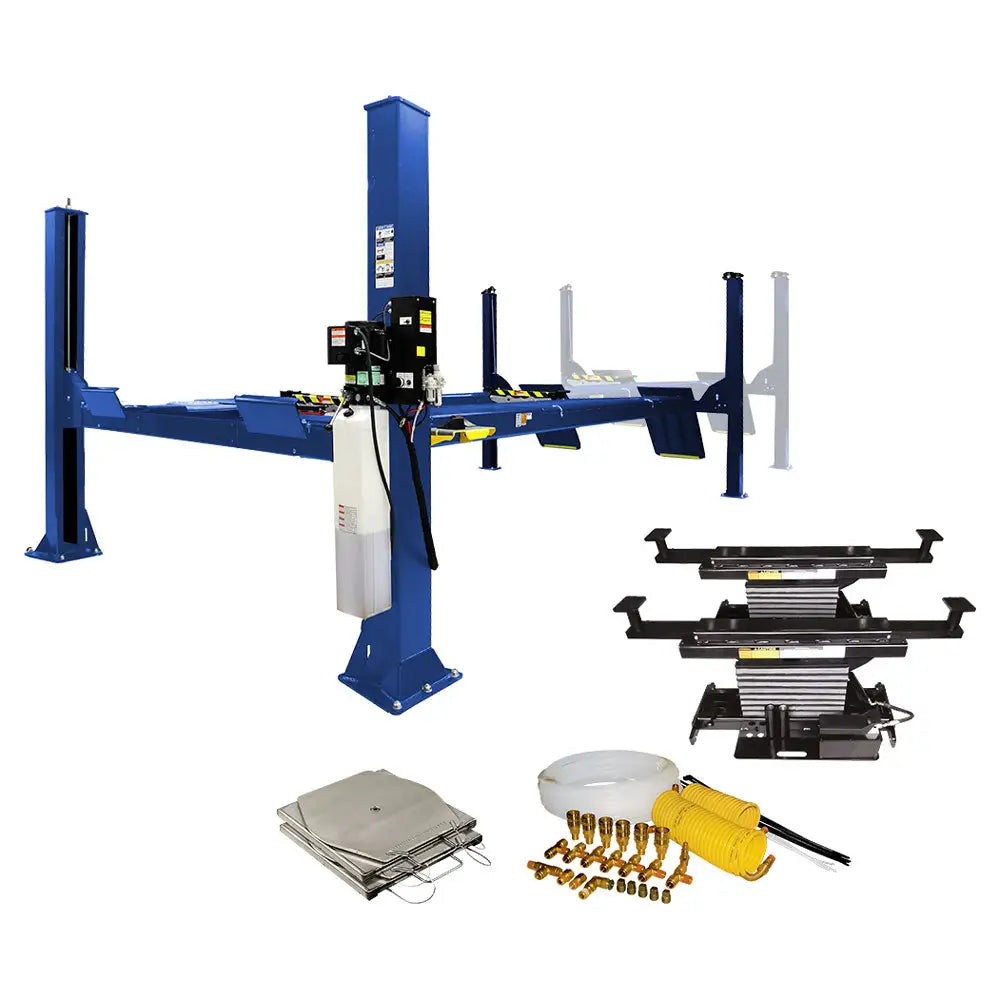

Includes:
2 x 9,000lb Rolling Jack1 x Flush Mount SS Turning Radius Gauges
1 x Internal Airline Kit
1 x Rear Slip Plates
1 x Multi-Position Work-Steps
1 x Automatic Wheel Stops
