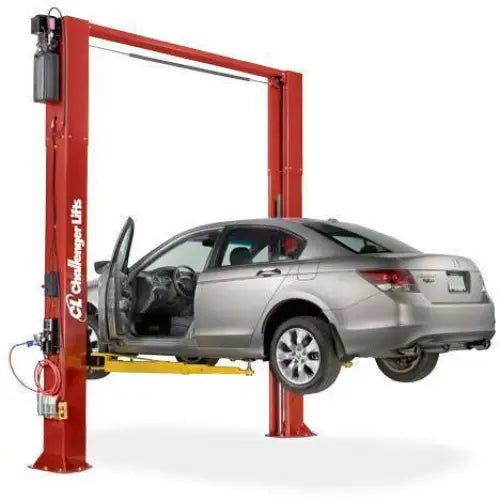

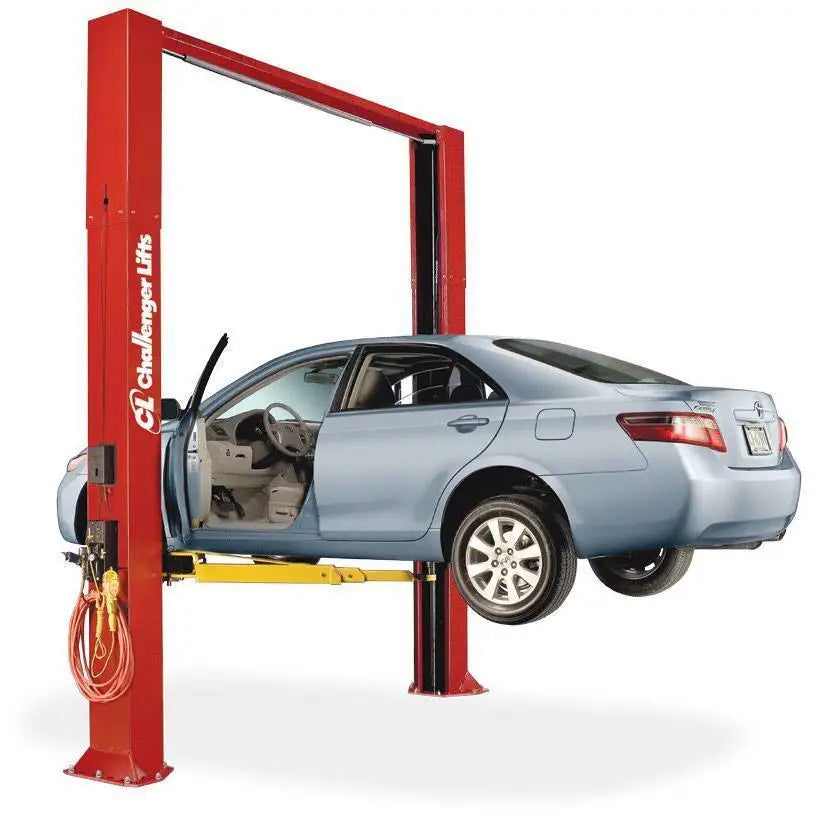

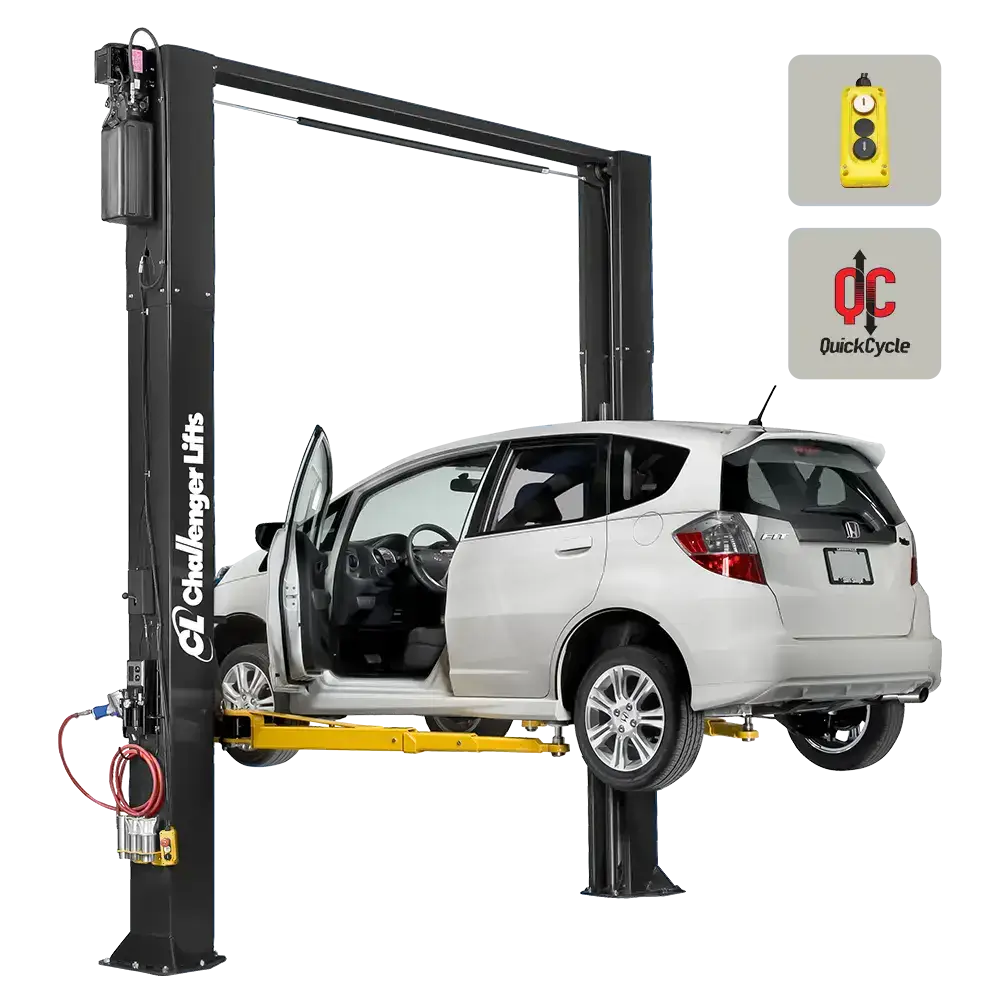

Challenger Lifts CL10AV3-DPC-QC is a 10,000 lb Versymmetric 2-Post Lift with Quick Cycle. Maximize shop efficiency with this adjustable, ALI-certified lift, perfect for a wide range of vehicles.
Features:
- True Versymmetric® Technology: Accommodates both symmetrically and asymmetrically loaded vehicles for optimal versatility.
- 10,000 lb Lifting Capacity: Robust design handles a wide range of cars, trucks, vans, and SUVs.
- Direct Power Cylinder (DPC): Eliminates lifting chains and cables, reducing maintenance and increasing reliability.
- Quick Cycle Hydraulics: Delivers faster rise and descent times, boosting productivity.
- Adjustable Width and Height: Provides flexibility to suit various shop layouts and vehicle sizes.
- ALI Certified: Ensures the lift meets stringent safety and performance standards.
- Single-Point Mechanical Lock Release: Simplifies operation and enhances safety.
- Low-Profile Arms: Easily position under low-slung vehicles.
Specs:
Lifting Capacity: 10,000 lbs.
Lift Configuration: Dual Pendant Controls & QuickCycle
Arm Configuration: 3-Stage Front/Rear
Rise Height: 74.125in
Overall Height: 11ft 2in or 11ft 8in
Overall Height (Cylinder Extended): 11ft 11in
2ft Height Extension Available: Yes
3ft Height Extension Available: Yes
Overall Width: 11ft 6.5in / 12ft .5in / 12ft 6.5in
Drive-Thru Clearance: 100in / 106in / 112in
Floor to Overhead Switch: 10ft 8.5in - 11ft 2.5in
Front Arm Reach: 20in - 42in
Rear Arm Reach: 37.625in - 60in
Screw Pad Height: 3.875in - 6.125in
Inside Columns: 110in / 116in / 122in
Motor / Voltage: 3HP, 208v-230v, 60Hz, 1Ph
Speed of Rise: 27s
Ceiling Height Required: 12ft
ALI/ETL Certified: Yes
Colors Available: Red, Blue, Black
