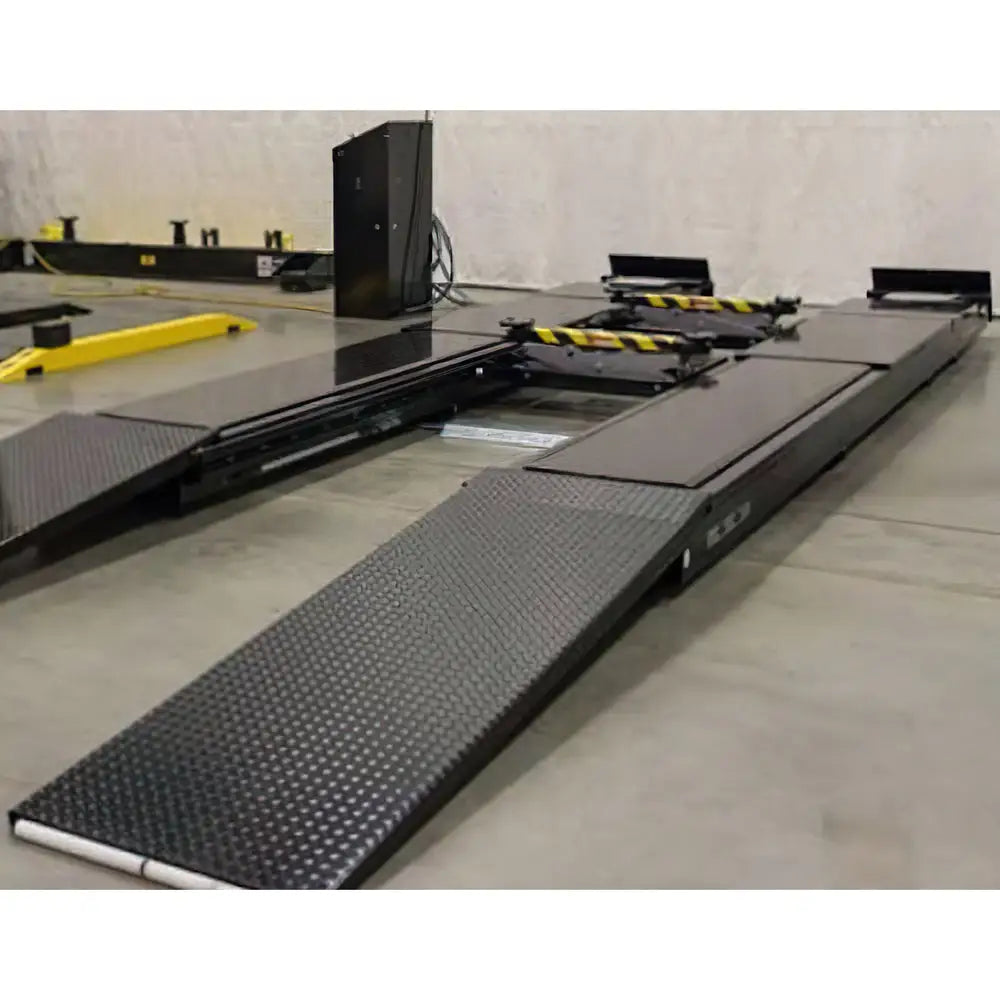

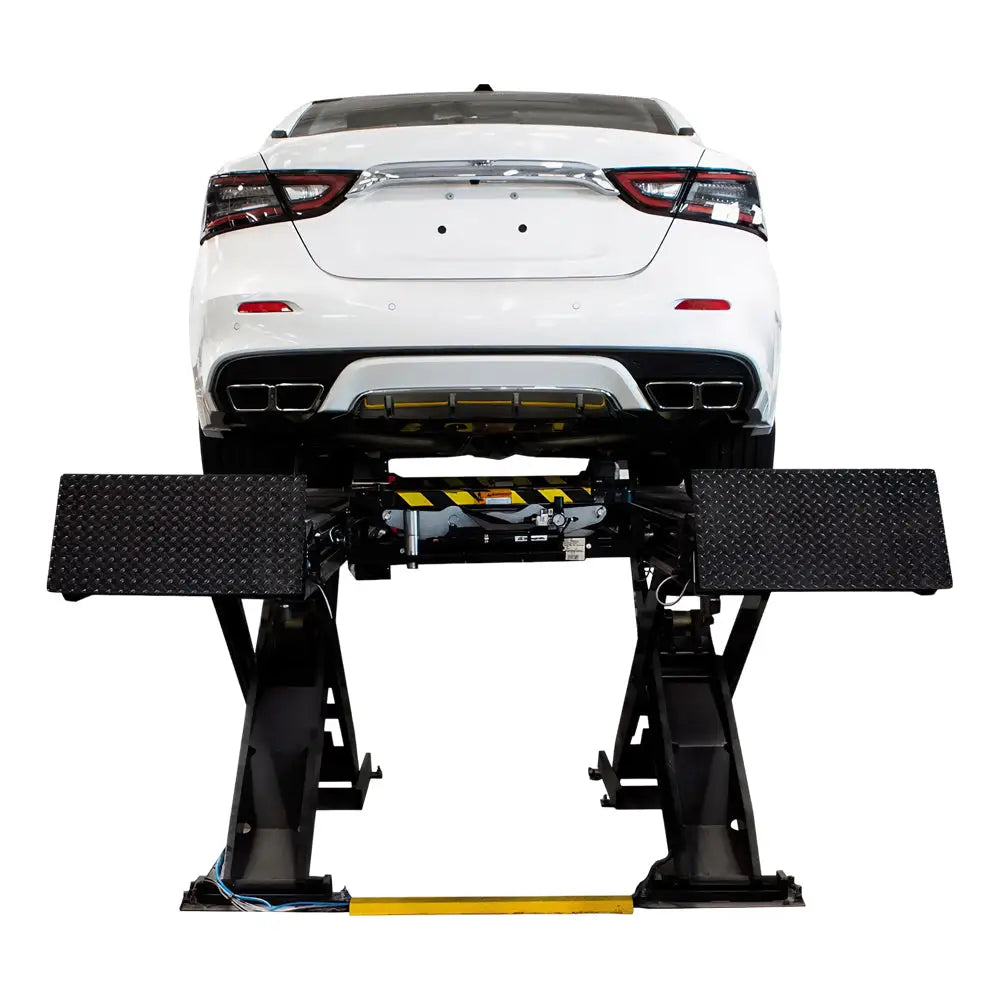

Looking for a reliable and precise scissor alignment lift? Look no further than the Challenger SX14 14K Scissor Alignment Lift. With a 14,000-pound capacity and a sleek single-scissor design, this lift is built to last. The 25.5-inch wide runway is perfect for various vehicles, while automatic LED lighting ensures a well-illuminated workspace. Adjust turn plates and locking alignment plates guarantee spot-on results. This is a surface-mounted model with the option to upgrade to a flush-mounted configuration, all equipped with photocell technology for perfect synchronization. Kit includes rolling jacks, turn plates, and an airline kit for dual jack operation.
Features:
- Versatile Kit: Includes rolling jacks, turn plates, and dual jack operation kit.
- Wide Runway: Accommodates single and dual rear-wheel vehicles easily.
- Precise Sync: Photocell ensures runway synchronization for accuracy.

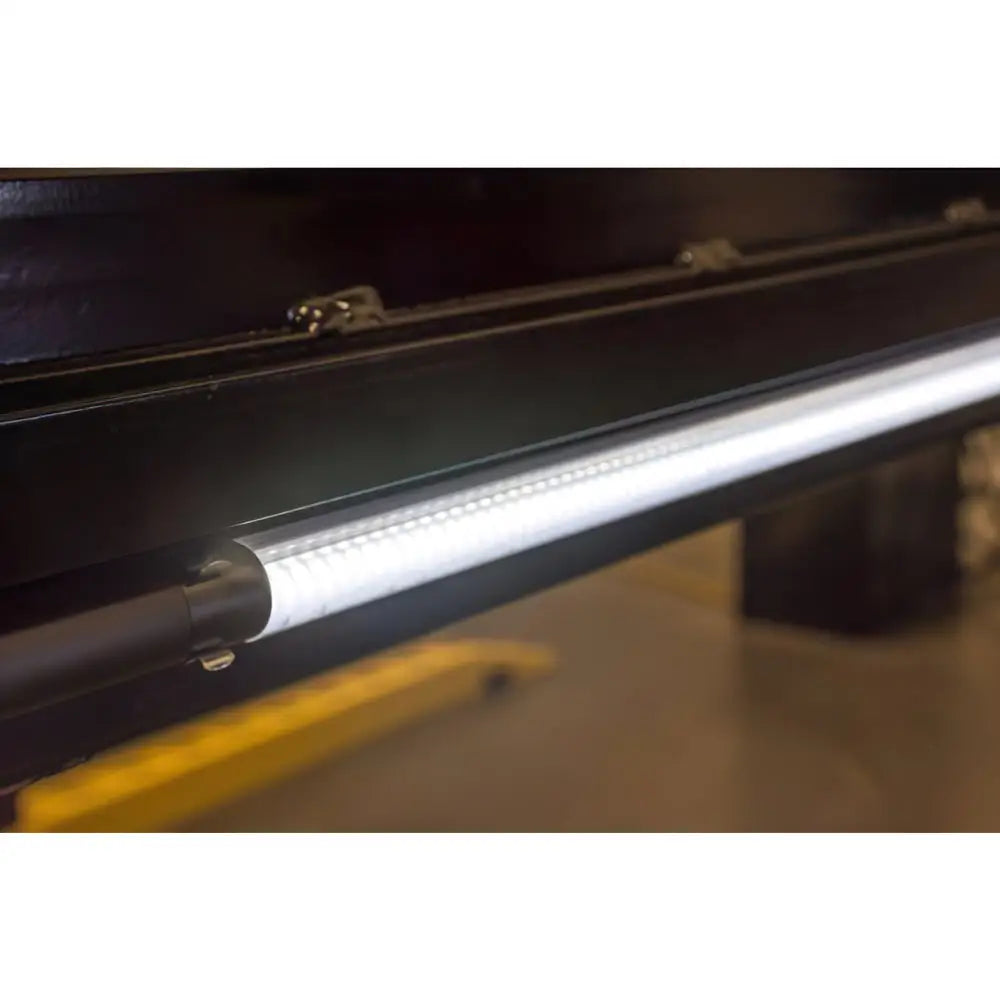

- Auto Lighting: Illuminates the vehicle's underside, saving energy when lowered.
- Low Maintenance: Rear slip plates with oversized bearings protect against debris.

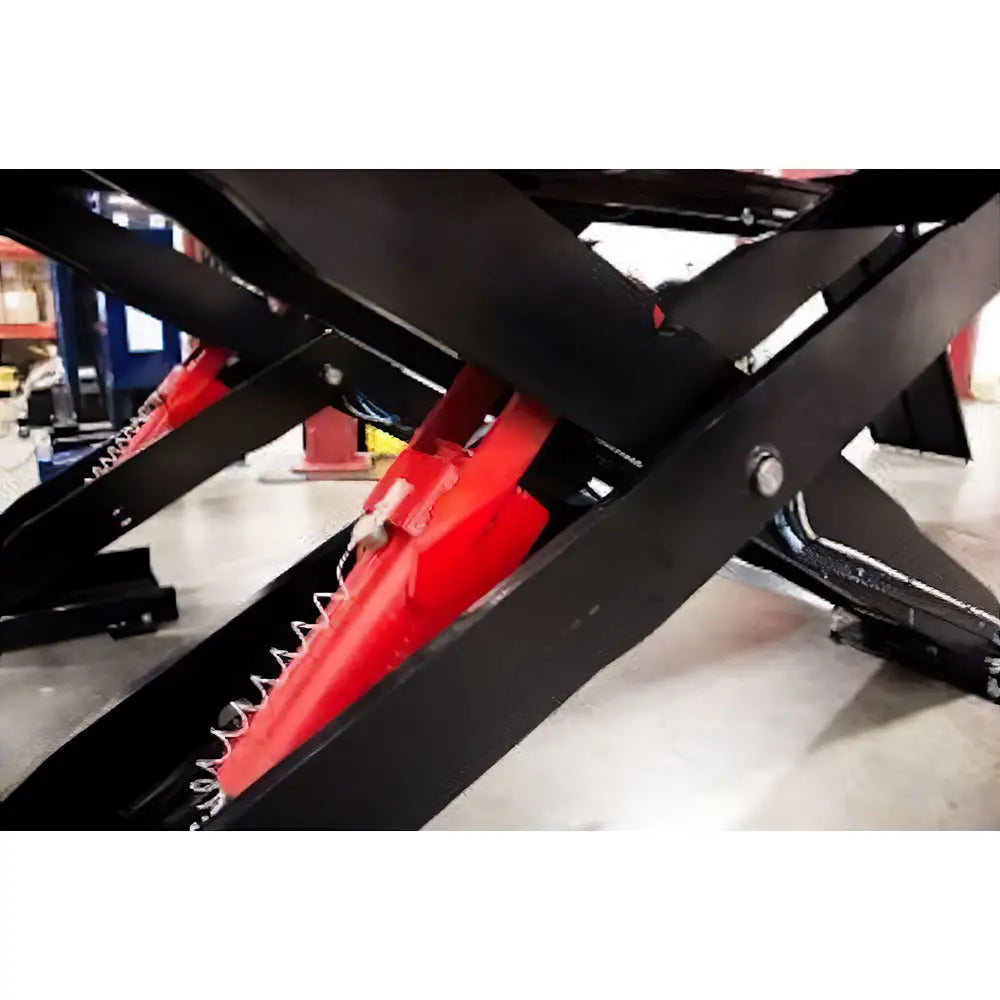

- Smooth Operation: Twin hydraulic cylinders ensure smooth performance.
- Noise Reduction: Approach ramps have end rollers, reducing noise and damage.
- Effortless Use: Single-point air lock release for ergonomic operation.
- Durability: Powder coat finish for long-lasting reliability.
- Mounting Options: Choose above-ground or flush mounting.
- Certified Quality: ALI certification guarantees product quality.
Specs:
Model: StandardLifting Capacity*: 14,000 lbs.
Rise Height: 77in
Overall Length: 265in
- Ramp Length: 62.75in
Overall Width: 91.25in
Width of Runways: 25.5in
Between Runways: 40in
Lowered Height: 10.5in
Maximum Wheelbase: 183in
Wheel Alignment (Max.): 176in
Wheel Alignment (Min.): 70.75in
Motor: 3 HP
Voltage (Single Phase Std.): 208-240v (23 FLA)
Speed of rise: 75 s
Air Required (filtered/lubricated): 90 - 120 psi (20CFM)
Min. Recommended Bay Size: 14ft x 28ft
ALI/ETL Certified: Yes
Color Available: Black
Site Requirement
Bay Height: Rise Height + Height of Vehicle
Bay Width: 14ft Recommended
Bay Depth: 28ft Recommended
Electrical Requirements
- Voltage: 208-230V
- Phase: 1PH
- Breaker: 30 Amp
Concrete Specs (Minimum)
- Thickness: 4in (Free from Cracks/Seams)
- Rated @: 3500+ psi
- Cured Time: Minimum 28 Days
Air Requirement: 90-120 psi
Ref No.
SX14-SR
SX14 STANDARD
Similar Product
SX14-ER (Extended Ramp)
SX14-FLUSH, SX14-FM (Flush Mount)
EELR789APKG (Hofmann)
6602 (Ravaglioli)
AULS14ALOR1T (Autel)
Ref Name
Surface Mount Scissor Alignment Lift
Scissor Alignment Lift System
Application:
Auto AlignmentGarage Work
Vehicle Maintenance
Wheel Alignments
For Vehicles
Cars/LT
Trucks
For Businesses
Repair Shops
Alignments Shops
Fleet Maintenance
Includes:
1 x SX14 Lift2 x 7K Rolling Jacks
2 x Stainless Steel Turn Plates
2 x Rear Slip Plates
1 x Dual Jack Airline Kit
