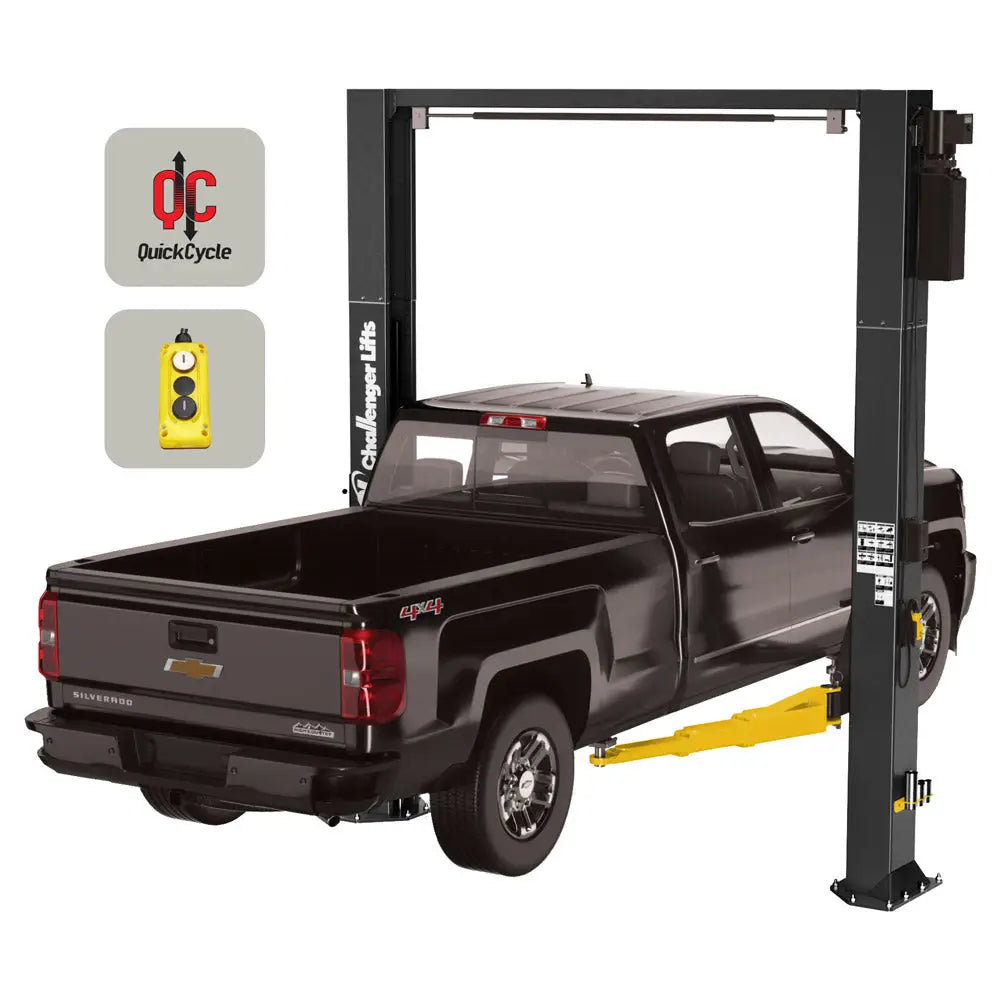

Attention high-volume shops seeking the paramount 12K lbs lift: meet the CL12A-DPC-QC by Challenger, the fastest in its class with a 40-second rise. ALI Certified, it ensures safety and bears Professional Approval. Boasting Quick Cycle technology, it slashes lift time by 30%, while Dual Pendant Controls expedite precise vehicle positioning. Enjoy unparalleled adaptability with +6in to +12in width adjustment during installation. Elevate your efficiency and profitability with the trusted brand that revolutionizes automotive lifting. Choose the CL12A-DPC-QC for optimal performance and the quickest lift in the industry.
Quick Cycle
The Quick Cycle hydraulic enhancement increases lift service efficiency by saving 30% rise and descent time. Boost the productivity and profitability of your shop by servicing more vehicles in the same amount of time.

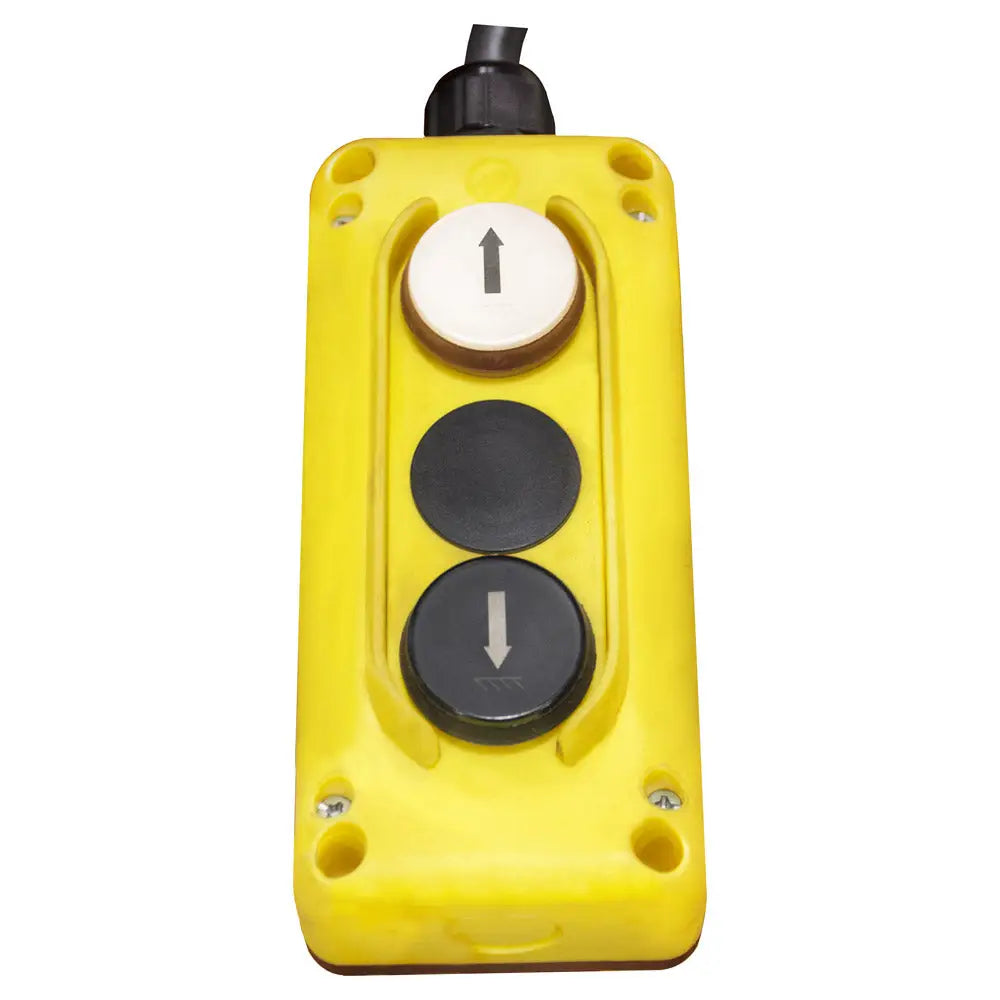

Dual Pendant Controls
Always within technician reach when small spotting adjustments matter, dual pendant controls expedite vehicle spotting from either column by providing an unobstructed view to lifting points.
Features:
- CL12A-DPC-QC: Fastest 12K lbs lift, 40-second rise.
- ALI Certified for safety, Professional Approved for trust.
- Quick Cycle tech: 30% faster lift time.
- Dual Pendant Controls for precise vehicle positioning.
- +6in to +12in width adjustment for adaptability.

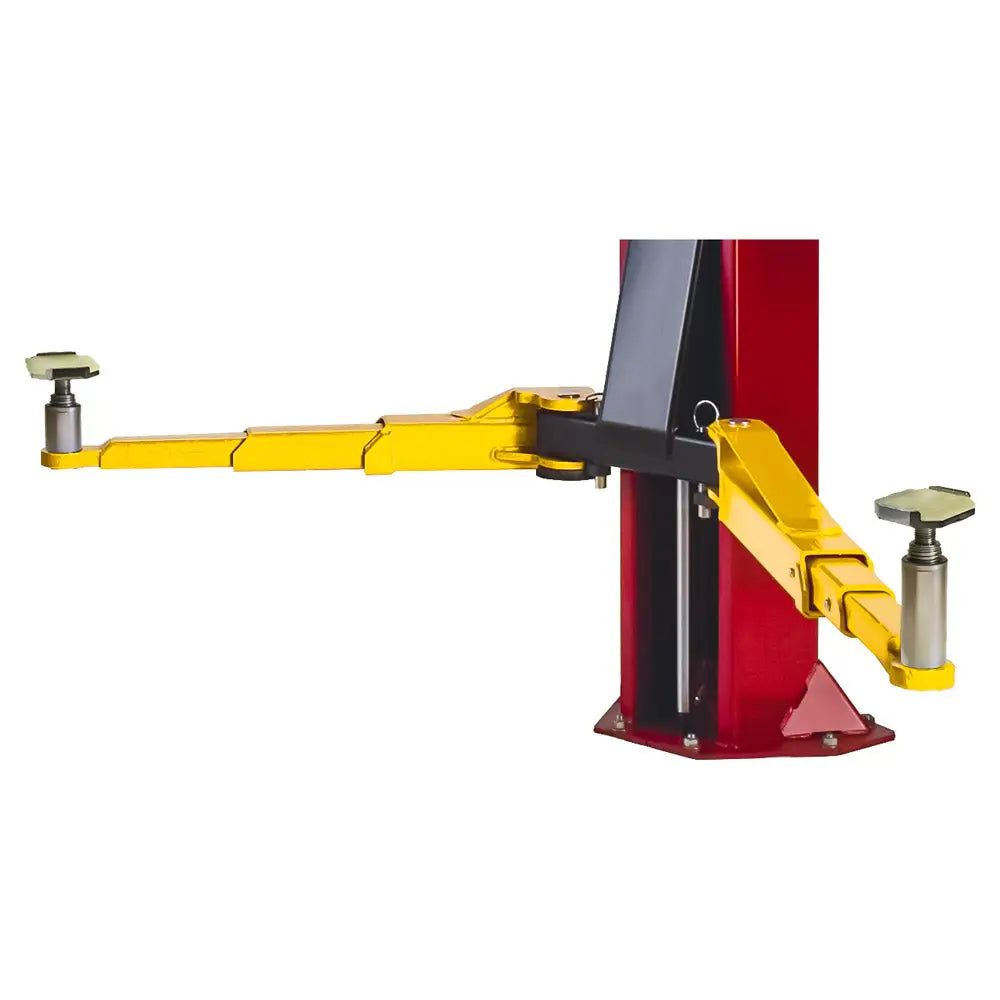

- EV Service Ready, 3-Stage arms, telescoping footpads.
- Revolutionize shop efficiency with Challenger's trusted brand.
Specs:
Lifting Capacity: 12,000 lbs.Lifting Configuration: Symmetric
Arms: 3-stage front/3-stage rear
Rise Height: 84.75in
Overall Height: 13ft 8in or 13ft 2in
Floor to Overhead Switch: 13ft 2in or 12ft 8in
Ceiling Height Required: 14ft 3in Minimum
Adjustable Width Overall: 142in / 148in / 154in
Drive-Thru Clearance: 103.5in, 109.5in or 115.5in
Arm Reach (Min.): 27.5in
Arm Reach (Max.): 59in
Screw Pad Height *: 4.75in - 6.625in
Inside Columns: 114.5in / 120.5in / 126.5in
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise (approximate): 63s
Colors Available: Red, Blue, Black
ALI® Certified: Yes
Ref No.
CL12-QCDPC (Older Model)
Similar Products
CL12A-LC (Low-ceiling w/o Quick Cycle & Dual Pendant)
CL12-QCDPC (Quick Cycle & Dual Pendant)
CL12A (Standard Model)
CL12A-1 (1ft Ext Model)
CL12A-2 (2ft Ext Model)
Ref Name
Challenger Quick 12K Lift
ALI Certified 12K Quick Lift
Quick Cycle 2-Post Lift
Application:
Auto RepairDealerships
Service Centers
Workshops
Garages
