Looking for a laser-guided wheel balancer that's both easy to use and accurate? Look no further than the CEMB ER71. With its LED display and quick-release wingnut, this wheel balancer is perfect for professional and home mechanics. It's electronic brake positioner ensures that your wheel weights are always applied correctly.
AutoAdaptive Mode: For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel
Automatic Approach: The wheel automatically approaches within 15° of the weight placement.
Virtual Sonar: the new CEMB software which enables, in the absence of an actual sonar device, to detect the rim width of steel rims without manually entering them.
Ergonomic Design: Developed to offer the operator the best possible working conditions.
Laser Line: For weight positioning inside the rim.
Manual Locking: Accurate wheel centering utilizing a quick locknut.
Electromagnetic Brake: Wheel locking system that locks the wheel in the correct position through an electromagnetic brake.
Features:
- Inner data entry arm automatically (2D).
- Excessive balancing modes are eliminated by direct measure input.
- Spotter for Laser Line Weight.
- Hidden Spoke Mode, ALU, and Guided Weight Placement.
- Wheel Hold, Quick-Clamp Wing Nut, and Foot Brake.
- Software for Static Residual Force Minimization
- 1.7" – 4.3" 3-Cone Passenger Car–Light Truck Kit.
- Ideal for confined spaces.
- Italian made.
- Completely tested and put together in the USA.
Specs:
Power Supply: 110VAC, 50/60 Hz, 1 phBalancing Speed: < 100 rpm
Balancing Accuracy: < 0.1 oz < 1 g
Average Cycle Time: 5 seconds
Rim Diameter Capacity: 10in - 30in 265 - 765 mm
Rim Width Capacity: 1.5in - 20in 40 - 510 mm
Max. Wheel Weight: 165 lbs 75 kg
Max. Tire Diameter: 40in 1,016 mm
Operating Temperature: 32 - 113deg.F 0 - 45deg.C
Shaft Size: 40 mm
Gross Ship. Weight: 354 lbs 160 Kg
Includes:
1 x Quick Nut1 x Cup
4 x Cones (1.69 - 5.2in)
1 x Caliper
1 x Shaft(40mm)
1 x Weight Pliers
1 x Allen Wrench
1 x Wheel Guard
1 x New Gauge (up to 30in)
Test Weight
Laser
Led light
Electric Brake
Acc. Bundles:

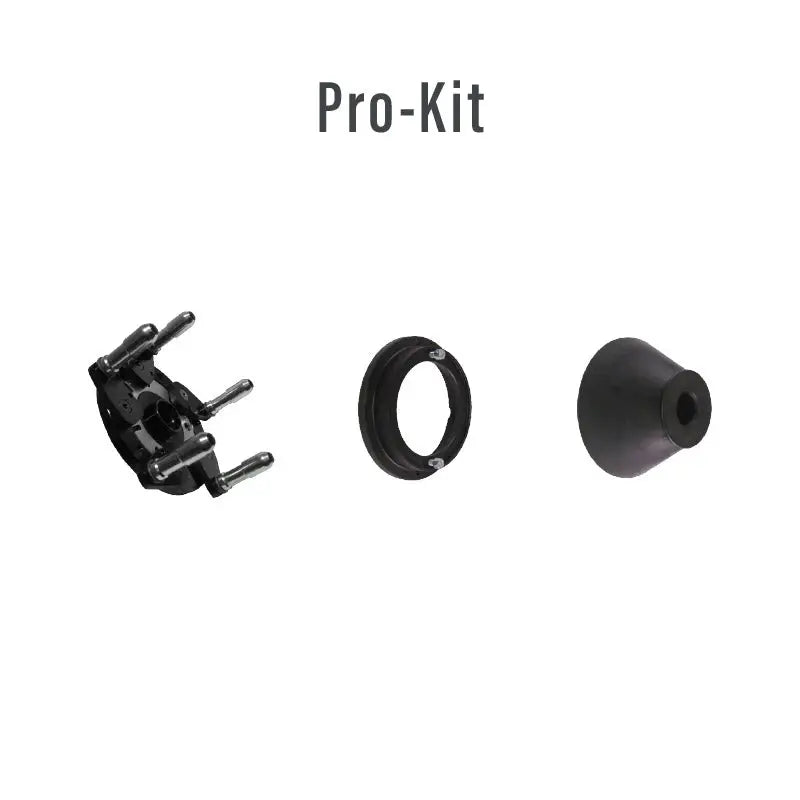

Pro-Kit Bundle - PROKIT: This kit comes with everything you need to do light truck wheels and lug-centric wheels. With the included adapters, you'll be able to get the job done quickly and easily.- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174

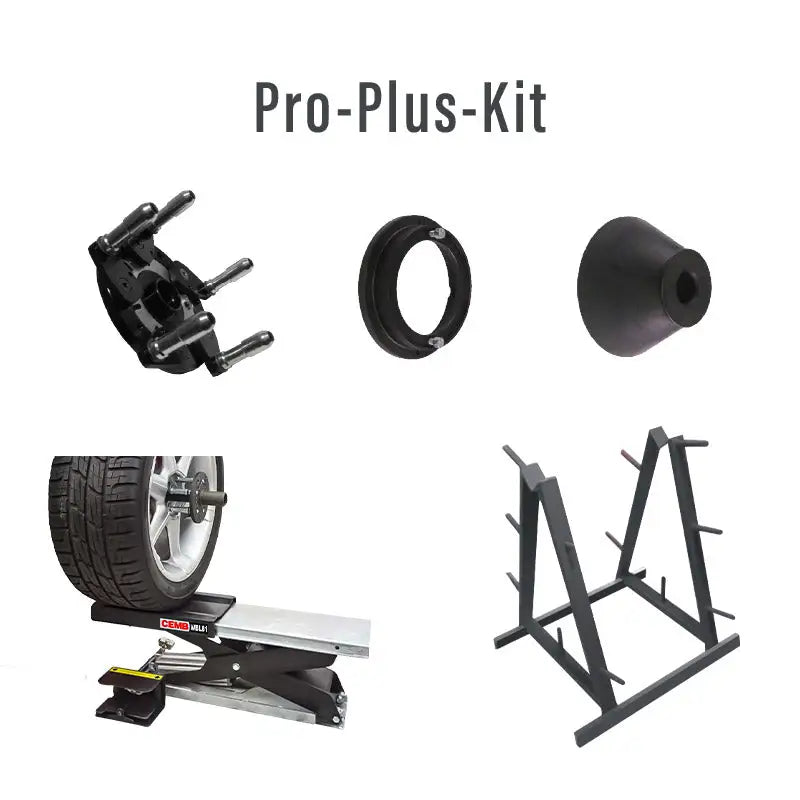

Pro Plus Kit Bundle - PROPLUS: This kit provides you with the necessary adapters to do light truck and lug-centric wheels while also providing a pneumatic wheel lift to lift heavy wheels. Plus, it comes with a storage rack for adapters.
- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174
- Pneumatic Wheel Lift - 46FL85170
- Accessory Rack - 41FF03151
