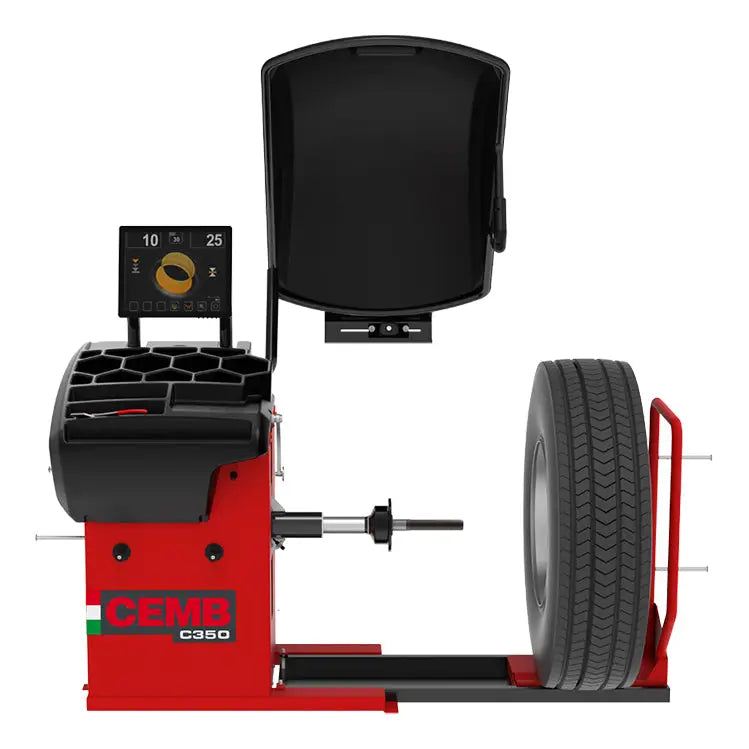

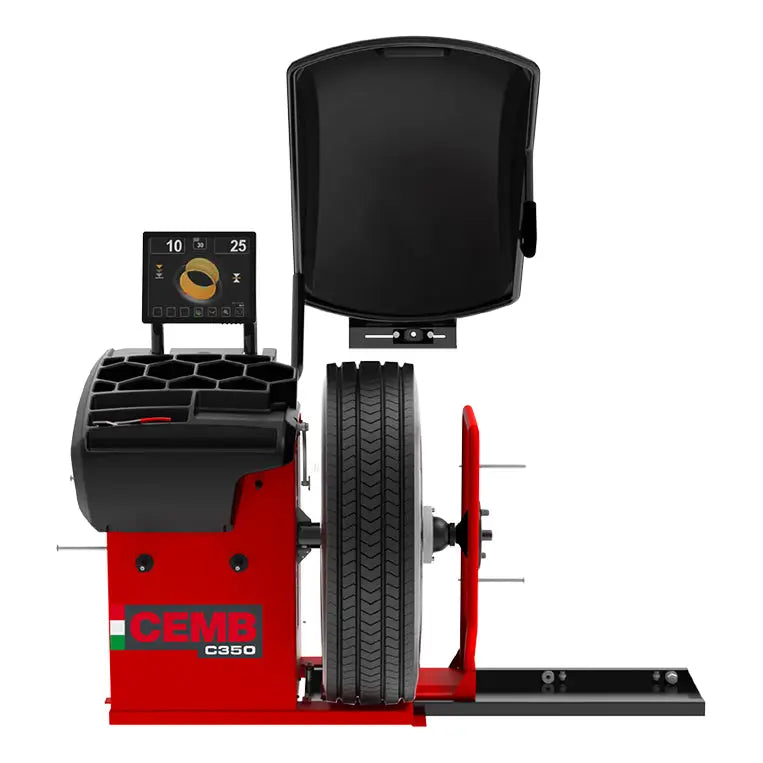

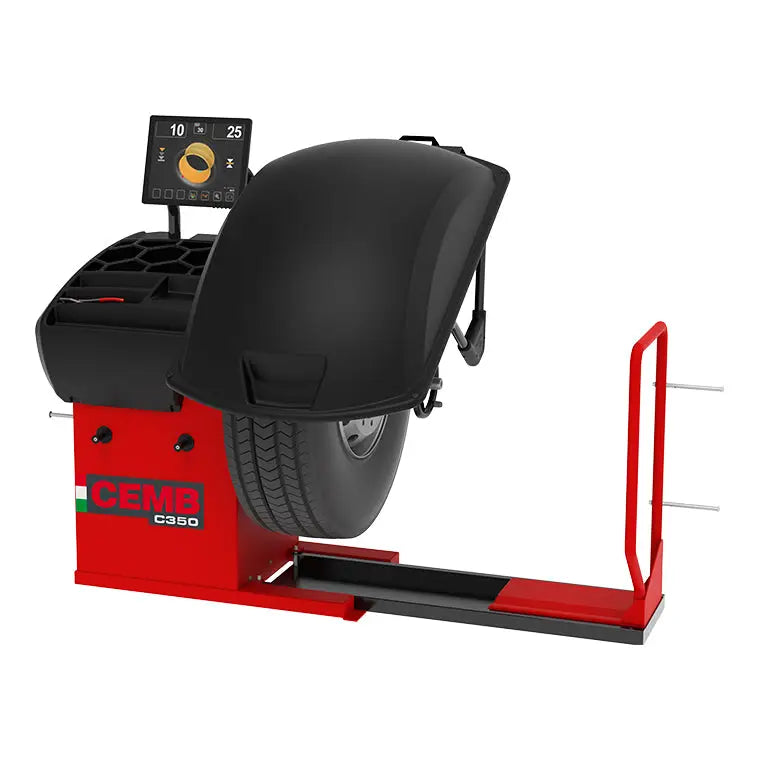

Need to balance heavy or commercial vehicle tires? Introducing the Cemb C350, the latest technology in video diagnostic wheel balancing specifically designed for heavy vehicles like trucks, buses, and cars up to 200 kg. With its innovative spindle shaft design, it ensures safer and easier centering even with large wheels. Featuring Sonar technology, it accurately measures radial and lateral run-out. The sturdy weight holder with optimized spaces enhances its durability. This complete balancing solution offers a modern and attractive design, making it a must-have for tire shops and professional mechanics dealing with heavy vehicles.
Features:

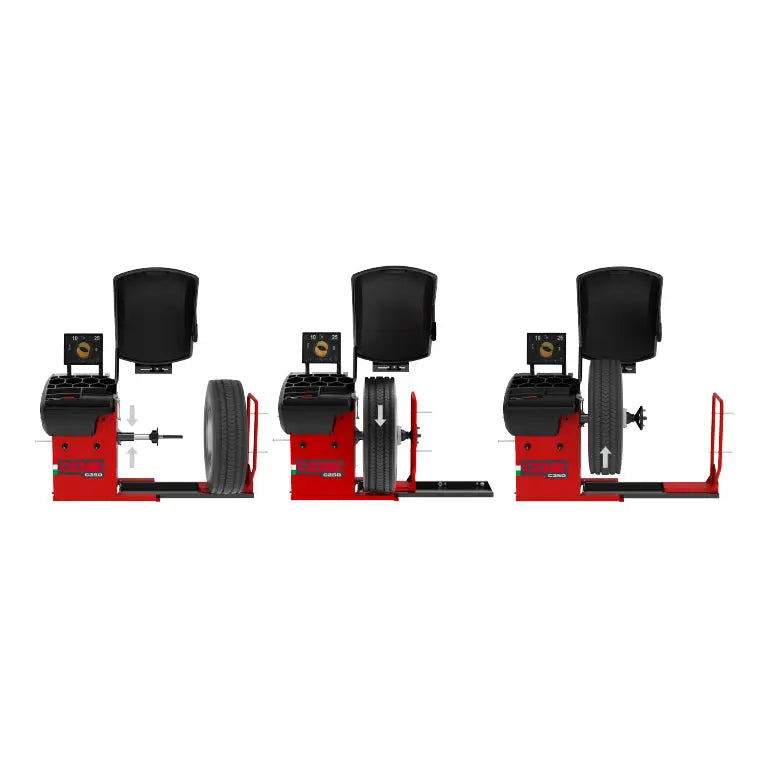

- Lifting Spindle: Effortless wheel loading with perfect centering.
- LA Sonar with Laser Pointer: Automatic wheel width measurement.
- EMS Sonar: Measures radial tire run-out during balancing.
- Laser Line: Positions adhesive counterweights for accuracy.
- HubMatch: Detects unbalanced and highest wheel points.
- Weight Tray: Optimized space for easy weight storage.
- Electromagnetic Brake: Locks wheel in exact weight position.
- Automatic Gauge: Measures rims up to 32” in diameter.
- Software: User-friendly and supports various balancing programs.
Specs:
Single phase power supply: 230V/1ph/50 HzSingle phase power supply: 115V/1ph/50 hzMax. absorbed power: 1,1 kW
Balancing speed: 130 rpm car / 80 rpm truck
Measuring cycle for car/truck wheel: 8 ÷ 20 s
Measurement uncertainty: ± 0.5 g
Resolution: 1 g car / 10 g truck
Average noise: < 70 dB (A)
Rim width setting range: 1.5in ÷ 20in / 40 ÷ 510 mm
Rim diameter setting range: 10in ÷ 30in / 265 ÷ 765 mm
Min./Max. compressed air pressure: 8 ÷ 12 kg/cm² / ~ 0.8 ÷ 1,2 MPa ~ 8 12 bar / 120 ÷ 165 psi
Max. wheel weight: 441 lb
Max. wheel diameter: 54 in
Machine weight: 463 lb
Similar Product
C218 (Discontinued)
Ref Name
Heavy Vehicle Balancer
Commercial Vehicle Balancer
Truck & Bus Balancing System
Application:
Auto Repair ShopsFleet Managers
Truck Workshops
Commercial Garages
Heavy Equipment Dealers
Transport Companies
Bus Operators
Includes:
Quick lock nut with lockingPincer-hammer
Width gauge
Optional
IV/V - GG - G40 cones kit: Kit comprised of IV and V cones, G40 disc and GG ring to centre truck or bus wheels with a central hole of 202/221/281 mm Ø.
SR 215/2 Kit: Supplied with a centering adaptor, 5 and 4 armed spiders, stud bolts, and screws to center wheels with 8 holes on 275/285.75 mm Ø and with 10 holes on 225/285.75/335 mm Ø.Car adaptor kit: For wheels with a 45-194 mm central hole Ø. Consists of 4 cones and a G40 disc.
Industry 4.0 Kit: allows an optimal planning of the work activity inside the workshop. Interconnected system based on an operator panel assembled on the machine and a PC software (Tyre Shop 4.0) developed specifically for CEMB.
